Relays

FTR-E1

High voltage DC switching relay: 1 poles, 20A or 30A-450VDC / 20A-800VDC / 10A-1,000VDC contact rating, coil values 12V and 24V, non polarized contacts, plastic sealed, PCB TH, cULus recognized type available.

FTR-E1J

High voltage DC switching relay: 1 poles, 20A-600VDC / 10A-1,000VDC contat rating, non polarized contacts, plastic sealed, screw mounting, #250 tab terminal, coil values 12V and 24V.

FTR-F1 R

Power relay: 2 poles, low profile, 8A contact ratings, coil values from 1.5V to 110V, flux proof case, PCB TH mount, contact forms 2a and 2c.

FTR-F2

Power relay: 1 pole, 5A, TV-5 rated, VDE. Contact rating 100mA to 5A, coil values 5V to 48V, flux free, PCB TH mount, contact form 1A.

FTR-F3 3A/5A (slim type)

Power relay: Plastic sealed, 1 pole, contact form 1A, 3A/5A (slim type), 10mA to 5A , 3A/5A/250VAC/30VDC, coil voltages of 5V to 24V, 200mW, PCB TH mount, glow wire compliant type available(Only 5A).

FTR-F3 5A changeover contact

Power relay: plastic sealed, 1 pole, contact form 1C, 5A type, 10mA to 5A, contact rating 5A/250VAC/30VDC, coil voltage range 5V to 24V, 360mW, PCB TH mount.

FTR-F3 5A, TV-5 (ATEX)

Power relay: 1a, 5A (slim type), TV-5 rating (inrush 78A), coil to contact 6mm, plastic sealed, compliant to ATEX directive, certified to UL explosion-proof standard, coil voltage of 12 to 24V

FTR-H2

Power relay: 1 pole, 10A, TV-5 rated, VDE. Contact rating 100mA to 10A, coil values 5V to 48V, flux free case, PCB TH mount, contact form 1A.

FTR-K1 12A

Power relay: 1 pole, 12A 250VAC/ 24VDC contact rating, coil voltages of 5V to 60V, flux proof, PCB TH mount, gold plated, contact forms 1A and 1C, standard type.

FTR-K1-105C sealed

Power relay: 1 pole, 16A 250VAC contact rating, coil voltages 5V to 60V, PCB TH mount, contact forms 1A and 1C, plastic sealed cover, 105degree C, glow wire compliant type available

FTR-K1-10A

Power relay: 1 pole, high sensitivity, 10A 250VAC / 24VDC contact rating, coil values of 5V to 48V, flux proof, PCB TH mount, contact form 1a and 1c.

FTR-K1-16A 80A inrush type

Power relay: 1 pole, 16A 250VAC/ 24VDC contact rating, coil voltages of 5V to 60V, flux proof, PCB TH mount, contact forms 1A and 1C, 80A inrush type, glow wire compliant type available.

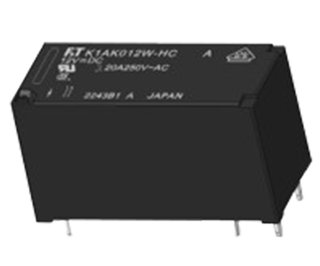

FTR-K1-HA

Power relay: 1 pole, 20A 250VAC contact rating, coil voltages of 5V to 18V, PCB TH mount, contact form 1a, flux proof.

FTR-K1L

Power relay:1 or 2 coil Latching, 1 pole, 80A inrush, 16A 250VAC contact rating, coil voltages of 5V to 24V, PCB TH mount, contact forms 1A and 1C.

FTR-K2G

Power relay: 1 pole, 20A, TV-8 rated, Coil values 5V to 110V, contact form 1A, contact gap 3.0mm.

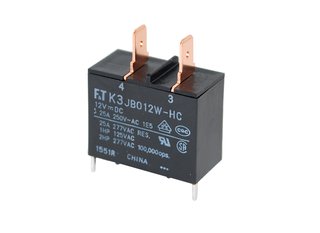

FTR-K3L

Power relay: 1 pole, 25A, 2coil, Bi-stable, 100mA to 25A, 250VAC contact rating, coil voltages of 5V to 24V, PCB TH mount/Tab type, contact form 1A.

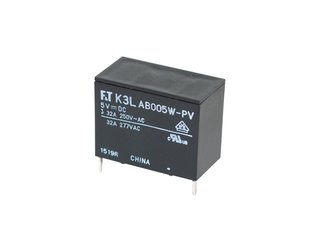

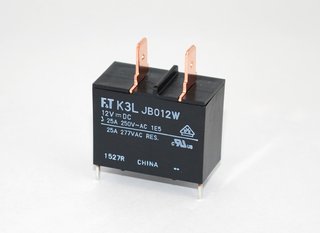

FTR-K3LV

Power relay: 1 pole, 2coil, Bi stable, 32A, 100mA to 32A, 250VAC contact rating, coil voltages of 5V to 48V, PCB TH mount, screw hole terminals, contact form 1A, .

FTR-K3-PS

Power relay: 1 pole, Contact gap 1.8mm, Contact rating 32A/250VAC, Coil voltages 5V to 48V, 1400mW. PCB TH mount,Flux proof sealing, contact form 1A

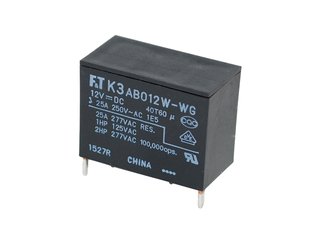

FTR-K3-WG

Power relay: 1 pole, 1.5mm contact gap. Contact rating 25A, coil values 5V to 48V, contact form 1A, PCB type

FTR-LY

Power relay: 1 pole, 6A slim, VDE, 10mA to 6A contact rating, coil values of 5V to 48V, plastic sealed, PCB TH mount, contact forms 1A and 1C, UL hazardous location compliant type available.

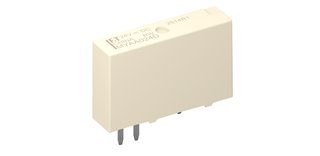

FTR-MY (150mW type)

Power relay: 1-pole, 5A, slim power relay suitable for high density mounting and low profile applications as PLCs, power consumption 150mW.

FTR-MY (socket mounting)

Power relay: 1-pole, 5A contact rating, 24V coil voltage, socket mount, contact form 1a, suitable for PLCs, I/O modules etc., rated power 150mW.

JS (ATEX)

Power relay: 1a and 1c, 8A, 5 to 24V coil voltage, plastic sealed case, PCB TH mount, ATEX compliant, glow wire compliant type available.

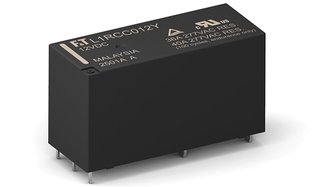

FTR-L1

Power relay, 2 poles, 1a+1b, 2-coil latching, 25A or 40A, contact gap 4.5mm, conform to IEC62368-1, coil value 12V and 24V

FTR-R1

Power relay: 1a, 270A or 320A, flux proof or plastic sealed, 12, 24V coil voltage.
