PRESS RELEASE
June 10, 2025
FCL Components Launches Tab Terminal, High Voltage DC Switching Relay (EMEA)

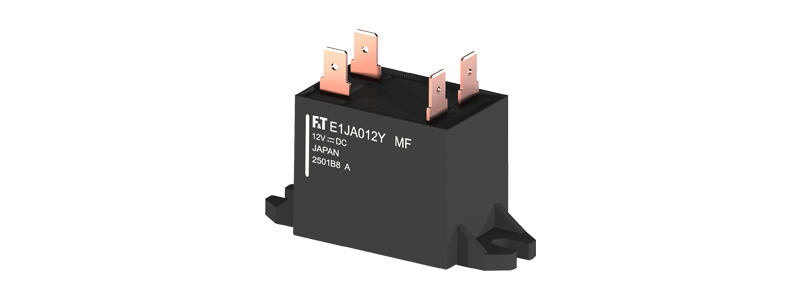

Hoofddorp, The Netherlands – June 10, 2025 – FCL Components Europe, B.V., has released the FTR-E1J 20A, a tab terminal-type high voltage DC switching relay, based on its FTR-E1 series. It is screw mounted and does not use a printed circuit board.
This new relay delivers 20A 800 VDC, 10A 1,000VDC higher voltage switching with no specific polarity requirements for the connection of load terminals, and low power consumption (0.9W at coil rated voltage). It features non-polarized contacts, making it suitable for charge and discharge circuits, while using FCL Components’ arc suppression technology to protect its contacts.
The FTR-E1J 20A is ideal for both fuel and electric vehicles. The applications include vehicle battery applications such as vehicle pre-charge (HEV, PHEV, FCV, EV), V2H, PTC heaters, quick charge stations, photovoltaic power generation systems, hybrid construction machinery and energy storage battery systems.
This high insulation design (between coil and contacts: 5,000VDC, between open contacts: 2,500VDC), plastic sealed relay is RoHS compliant and uses no hydrogen gas. It measures 28.3 x 43.6 x 36.1 mm (excluding protrusion) and weights approximately 85g.
Please contact us for further information at info@fcl-components.eu or visit our website for a local distributor Sales Contacts - EMEA : FCL Components .
Specifications:
| Series | FTR-E1J |
| Contact form | 1a (1 Form X) |
| Contact form | 1a (1 Form X) |
| Contact rating | 20A, 800VDC 10A, 1,000VDC |
| Terminal type | #250 tab terminal |
| Mounting type | Screw mounting |
| Coil type | Single winding type (non-latching) |
| Surge strength (coil to contacts) | 10 kV (initial, reference) |
| Clearance (coil-contacts) (mm) | 9.5 |
| Creepage (coil-contacts) (mm) | 12.7 |
| Dimensions (mm) | 28.3 x 43.6 x 36.1 |
Company Information
FCL Components Europe B.V., markets, sells, and distributes relays, printers, IoT devices, wireless modules and touch panels throughout Europe, Middle East and Africa. The company is headquartered in Hoofddorp, The Netherlands and has representatives and distribution partners throughout its region. For more information, contact Fujitsu at +31 (0)23 556 0910 or info@fcl-components.eu. For more information, please visit our website www.fcl-components.com/en/
