Touch Panels: Flush Surface Touch Panels

Overview

FCL Components' flush surface touch panels deliver a sleek, modern look with seamless integration into device housings. Their flat design reduces parts, enhances waterproof and dustproof performance, and makes cleaning effortless—perfect for medical, food, and industrial environments. Built on reliable resistive technology, they respond smoothly to fingers, pens, or gloved hands, even in wet conditions. Stylish, durable, and universally usable, they bring both high‑tech appeal and dependable functionality to any application.

Flush Surface Touch Panel Features

Light touch input resistive

• 4-/5-wire resistive, glass-film construction.
• It has the unique feature of being a resistive type that allows various input methods, while achieving the light operation like a projected capacitive type (input load minimum 0.02N).

Selectable cover film

• Clear Film V2: Excellent clarity, visibility and smooth touch (same appearance and smoothness as projected capacitive touch panels)
• Non-glare: Reducing reflections and glare, light touch operation

Flat appearance & various options

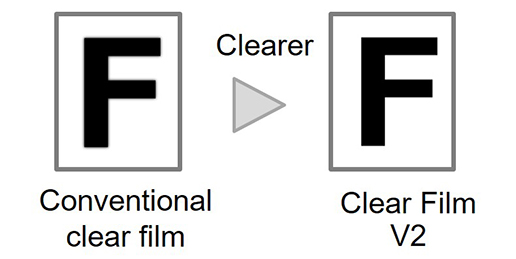

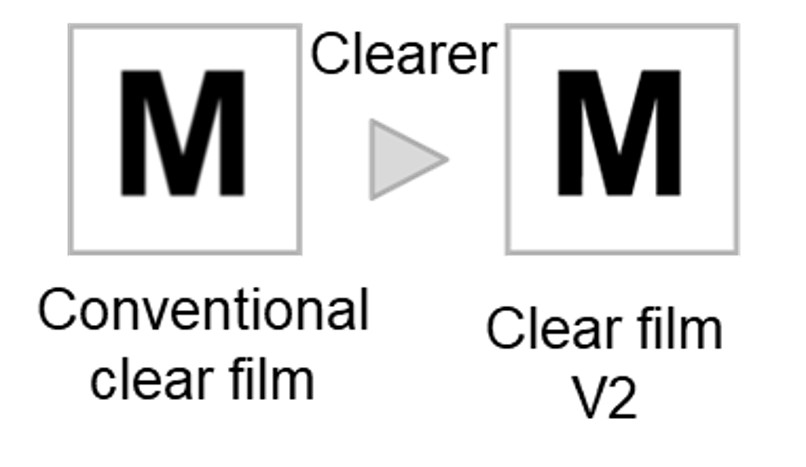

• Clear Film V2






  A film with excellent clarity, visibility and smooth touch.
• Logo & special shape




  Logo or icon printing, special shape processing such as round glass shape and hole drilling on frame area.
• Flat appearance




  Flat design comparable to projected capacitive technology, with the functional benefits of resistive technology.
• Frame switch




  Our unique wiring technology enables placement of switches on the frame. (Patent pending)

Excellent compatibility with Clear Film V2

Combination of flush surface touch panel and clear film v2 provides a stylish appearance and smooth operability comparable to projected capacitive touch panels.

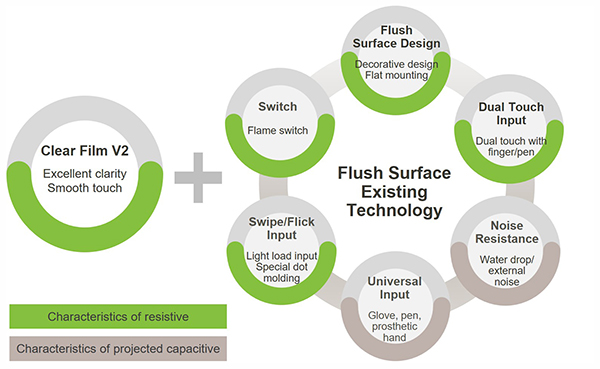

• Combination of flush surface touch panel and existing technology

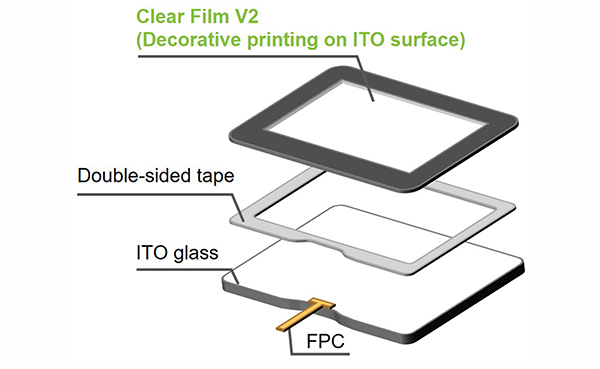

• Touch panel layer structure (example of flush surface)
